SÄKAPHEN Coating of Spill Boxes

Complementary Asset Protection

Under certain circumstances the internal lining of ISO Tank Containers or Road Tank Barrels is not required as the use of an inert gas prevents any corrosive attack of the substrate. However the outer Spill Box surfaces remain exposed and susceptible to attack if spillages occur.

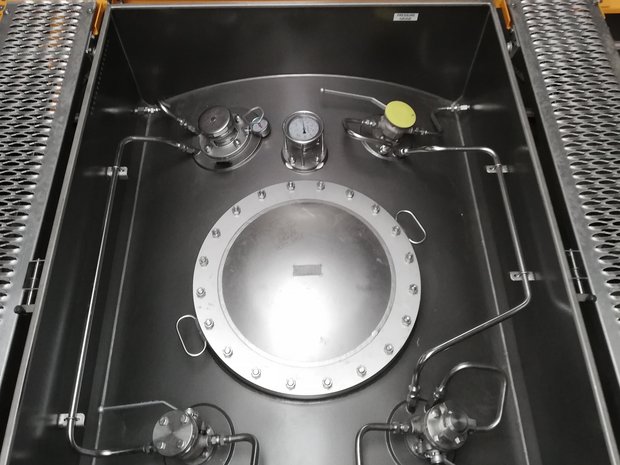

Spill box lined with a baked phenolic, TC Lining with UV resistant silicone based topcoat

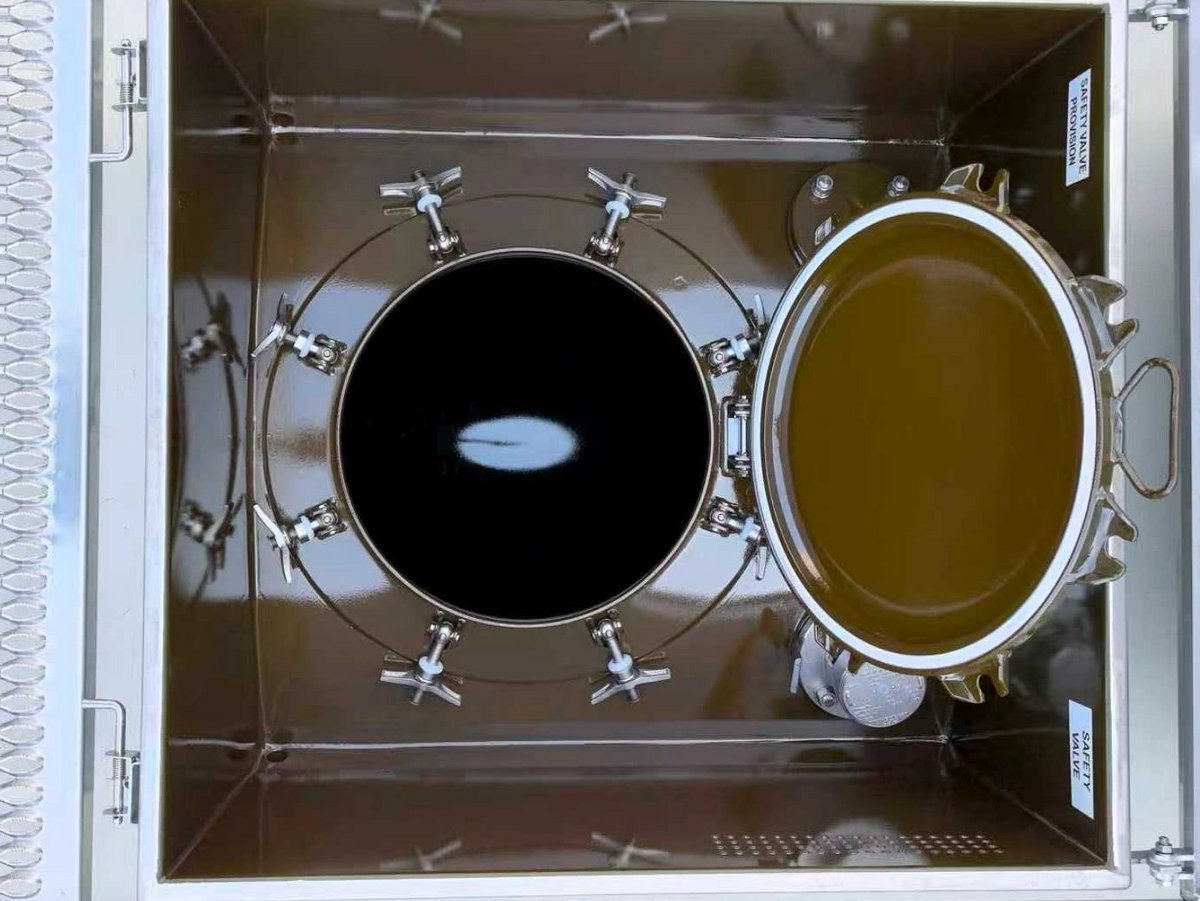

Spill box coated with a baked phenolic, TC Lining with UV resistant silicone based topcoat

SÄKAPHEN offers the service of coating the Spill Boxes with one of the heat cured or cold cured products from the SÄKAPHEN range which includes Heat Cured Phenolics / Epoxy-Phenolics alongside Cold Cured Epoxies, Novolac Vinyl Esters and Epoxy Vinyl Ester. Polymerizing the baked coatings has no effect on the insulation or cladding.

Spill box and Manlid coated with Si 14 E as protection against attacks if spillages occur
Spill box and Manlid coated with Si 14 E as protection against attacks if spillages occur
Spill box and Manlid coated with Si 17 E used in the field of flammable liquids classified as hazardous according to class AI / AII
Spill box and Manlid coated with Si 17 E used in the field of flammable liquids classified as hazardous according to class AI / AII

A benefit of applying a cold cured product is improved protection against mechanical damage during loading or discharge and the peace of mind that these areas are easily repairable with products from the SÄKAPHEN “/RE” range. In case of ISO Tank Containers used in a high temperature environment, other tailormade solutions may include a system of baked phenolic linings with UV resistant silicone based topcoat.

Typical applications

Spill Box and Neckring of the manhole coated with cold cured SÄKATONIT Extra AR for the protection against chemical and mechanical attacks, Si 14 E lining on the inside
Spill Box and Neckring of the manhole coated with cold cured SÄKATONIT Extra AR for the protection against chemical and mechanical attacks, Si 14 E lining on the inside
Spill Box with flanges only coated with cold cured SÄKATONIT Extra AR for the protection against chemical and mechanical attacks, Si 14 E lining on the inside
Spill Box with only flanges coated with cold cured SÄKATONIT Extra AR for the protection against chemical and mechanical attacks, Si 14 E lining on the inside
Spill Box and Neckring of the manhole coated with Si 14 E for the protection against severe chemical attacks, Si 14 E lining on the inside
Spill Box and Neckring of the manhole coated with Si 14 E for the protection against severe chemical attacks, Si 14 E lining on the inside
Spill Box with only flanges coated Si 14 E for the protection against severe chemical attacks, Si 14 E lining on the inside
Spill Box with only flanges coated Si 14 E for the protection against severe chemical attacks, Si 14 E lining on the inside

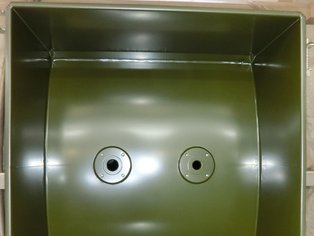

Spill Box lined with Si 14 E with blind flanges lined with Si 14 E on the inside face
Spill Box lined with Si 14 E with blind flanges lined with Si 14 E on the inside face
Spill Box lined with Si 14 E with blind flanges protected with Si 14 E on all sides
Spill Box lined with Si 14 E with blind flanges protected with Si 14 E on all sides

Feel free to contact us for technical advice.

For any specific chemical resistances, fields of use, technical questions or other lining and coating queries, please feel free to contact us for technical advice.

Tel.: +49 20439470 or Email: info[at]saekaphen.de

SÄKAPHEN is happy to support!
