HR 60 Extra G (Black)
Two-Pack Cold Cured Epoxy-based Hydrophobic Lining for Acidic to Strongly Alkaline Media - Electrically Conductive. High Gloss, Black Finish.
SÄKAPHEN HR 60 Extra G (Black) is a high-quality two-pack epoxy hydrophobic electrically conductive lining and coating, formulated for self-priming and direct to metal application. HR 60 Extra G (Black) is chemically resistant to various acidic and strongly alkaline substances ranging from fuels and hydrocarbons to all types of water including brackish, river and sea water and deionized water. The product is resistant to temperature fluctuations.
The lining film surface is hard elastic with excellent hydrophobic properties, preventing caking, fouling and incrustation, following polymerization the lining is fully machinable. HR 60 Extra G (Black) is a low-solvent containing ultra-high volume of solid (wt. %) of 80% or more. The lining is resistant to temperature fluctuations.
For the lining of substrates requiring a smooth, low friction surface offering anti-static properties in potentially flammable areas due to an electrical volume resistance below 107Ω. These can be found in Tanks, Silos, Funnels and Trays where flammable products are being stored or discharged. Can be applied on site and on concrete.
| Product name | Unit | SÄKAPHEN® HR 60® Extra Black / Schwarz | ||
|---|---|---|---|---|
| Properties | - | Cold Cured Duroplast Coating | ||
| Resin base | - | Amine cured Epoxy system | ||
| Field of Application | - | For the lining of substrates requiring a smooth, low friction surface offering anti-static properties in potentially flammable areas. These can be found in Tanks, Silos, Funnels and Trays where flammable products are being stored or discharged. The lining is electrical conductive (electrical surface resistance is less than 10^7Ω at 500 microns). | ||
| Cure Mechanism | - | Cold Cured Duroplast Coating | ||
| Quantity of components | - | 2 | ||
| Color | - | Black | ||
| Surface | - | Satin | ||
| General chemical resistance (All resistances have to be inquired separately!) | - | SÄKAPHEN HR 60 Extra G (Black) is chemically resistant to various acidic and strongly alkaline substances ranging from fuels and hydrocarbons to all types of water (including brackish, river and sea water and deionized water). | ||
| pH Range | pH | 1-13 | ||
| Wet Film Thickness per layer | µm | 150 | ||
| Total dry film thickness | µm | 400-500 | ||
| Coverage | approx. kg/m²/DFT | 1,3 kg / m² / 500µm | ||
| Surface Preparation | Sa | SA2 ½ - SA 3 | ||
| Surface Profile | µm | 40 - 60 µm | ||
| Temperature resistance dry (dry air oven) | °C | -20°C to +120°C | ||
| Temperature resistance wet (water) | °C | -20°C to 70°C | ||
| Resistance to water vapor diffusion | °C | ≤ ∆T 30°C | ||
| Overcoating Waiting Time | hours/23°C | 8-24 | ||
| Chemical Curing | days | 7-10 | ||
| Linear Thermal Expansion | µm | n/a | ||
| Pore testing | Volts | 2000 | ||
| Pendulum hardness acc. to König | 6° sec | 133 | ||
| Shore D Hardness | Shore D | 84 | ||
| Adhesion Test | N/mm² [MPa] | > 20 | ||
| Salt spray test | hours | 1250 | ||
| Impact Strength | mm (1 kg) | 550 | ||
| Surface smoothness (Ra) | µm Ø 3 readings | 0,3 | ||
| Surface tension | mN/m | >28 <35 | ||
| Taber Abrasion resistance, CS17 wheel, 1kg | mg/1000 r. | under examination | ||
| Crosscut | class | 0 (DIN EN ISO 2409) | ||
| Heat conductivity Ø 12,7x2,0mm on C-Steel with 67,37 w/mK | W/mK | n/a |

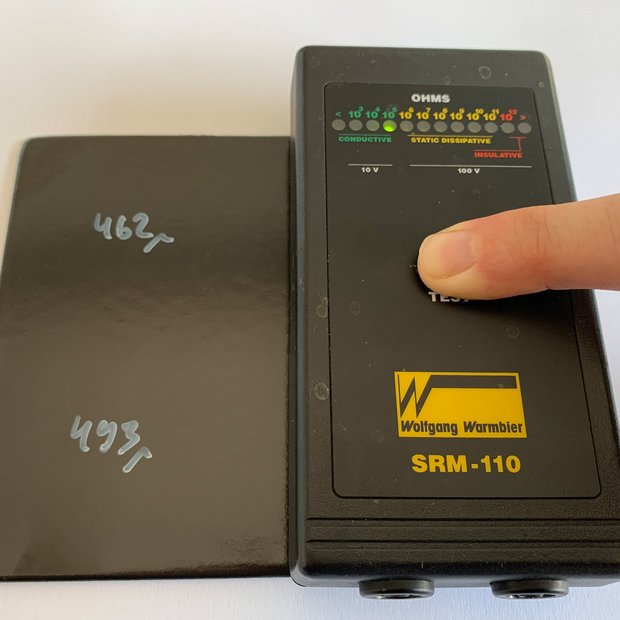

The fundamental task of electrostatically conductive linings and coatings is to discharge electrical charges and prevent static charging in advance.
