SÄKAPHEN

HR 60 Extra G (Green)

Two-Pack Cold Cured Epoxy-based Hydrophobic Lining / Coating for Acidic to Strongly Alkaline Media. High Gloss, Green Finish

SÄKAPHEN HR 60 Extra G (Green) is a high-quality two-pack epoxy hydrophobic lining and coating, formulated for self-priming and direct to metal application. HR 60 Extra G (Green) is chemically resistant to various substances ranging from sour to strong alkalis, inorganic salts and solutions, fuels and acidic aqueous liquids, as well as all types of water including brackish, river and sea water, as well as deionized water.

The lining film surface is hard elastic with first-rate hydrophobic properties, preventing caking, fouling and incrustation. Following polymerization HR 60 Extra G (Green) is fully machinable. The lining is resistant to temperature fluctuations.



Extreme weather conditions

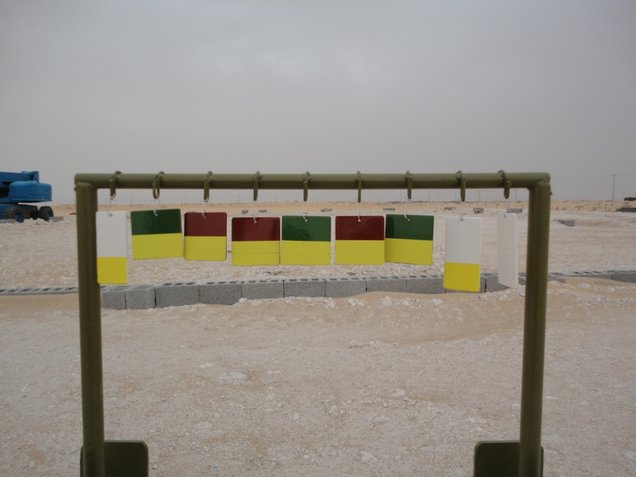

For a duration of 18 months, HR 60 Extra G (Green) has been exposed to the atmospheric conditions near Abqaiq in the Kingdom of Saudi Arabia:

-  Ø Temperature from 10°C to 44°C with peaks of 55°C
-  55% average humidity
-  Sandstorms
-  Salty air

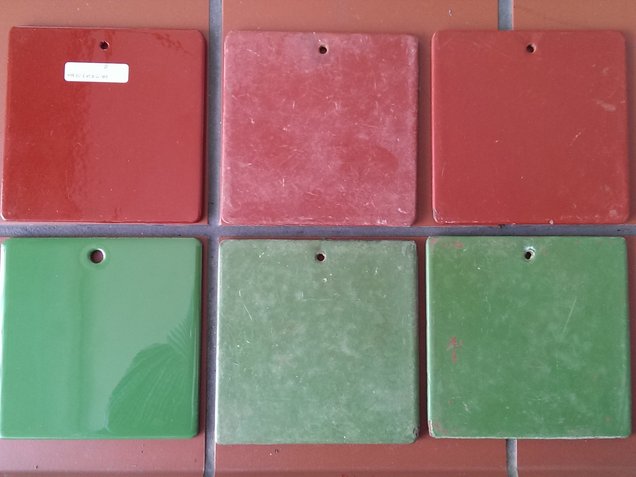

Hardness and impact strength of HR 60 Extra G (Green) were not affected by the exposure. Beside the superficial matting no further deterioration or weathering within the coating can be determined.

Suitable for the lining of Blowers, Fans, Compressors, Housings, Tanks, Vessels, Pipework, Meter Provers (Prover Loops) and used widely in Water Treatment and Desalination Plants. Can be applied on site and on concrete surfaces.

Product nameUnitSÄKAPHEN® HR 60® Extra G Grün / Green
 Properties-Cold Cured Duroplast Coating
 Resin base-Amine cured Epoxy system
 Field of Application-For the coating of blowers, fans and compressors, the corresponding houses, tanks and vessels, piping, spools and prover loops, for the applications in water treatment and desalination.
 Cure Mechanism-Cold Cured Duroplast Coating
 Quantity of components-2
 Color-Green
 Surface-Glossy
 General chemical resistance (All resistances have to be inquired separately!)-Resistant to all types of water, including brackish, river and sea water as well as deionized water, various substances ranging from sour to strongly alkaline, inorganic salts and their solutions, fuels, acidic aqueous solution.
 pH RangepH1-13
 Wet Film Thickness per layerµm150
 Total dry film thicknessµm400-500
 Coverageapprox. kg/m²/DFT1,2 kg / m² / 500µm
 Surface PreparationSaSA2 ½ - SA 3
 Surface Profileµm40 - 60 µm
 Temperature resistance dry
(dry air oven)
°C-20°C to +120°C
 Temperature resistance wet (water)°C-20°C to 70°C
 Resistance to water vapor diffusion°C≤ ∆T 30°C
 Overcoating Waiting Timehours/23°C8-24
 Chemical Curingdays7-10
 Linear Thermal ExpansionµmVDE 0304: 4 x 10-6 K-1
 Pore testingVolts2000
 Pendulum hardness acc. to König6° sec133
 Shore D HardnessShore D84
 Adhesion TestN/mm² [MPa]> 20
 Salt spray testhours1250
 Impact Strengthmm (1 kg)500
 Surface smoothness (Ra)µm
Ø 3 readings
0,20
 Surface tensionmN/m>28 <35
 Abrasion resistancemg/1000 r.under examination
 Crosscutclass
 Heat conductivity
Ø 12,7x2,0mm on C-Steel with 67,37 w/mK
W/mKn/a

Epoxy resins are curable resins reacting with a hardener to form a high-quality lining film. These linings and coatings have exceptional mechanical properties, including above average temperature and chemical resistance.

Feel free to contact us for technical advice.

For any specific chemical resistances, fields of use, technical questions or other lining and coating queries, please feel free to contact us for technical advice.

Tel.: +49 20439470 or Email: info[at]saekaphen.de

SÄKAPHEN is happy to support!
