Si 17 E
Phenolic Based Heat Cured Hydrophobic Lining for Highly Acidic to Weak Alkali Media. Electrically conductive. Satin Olive Finish

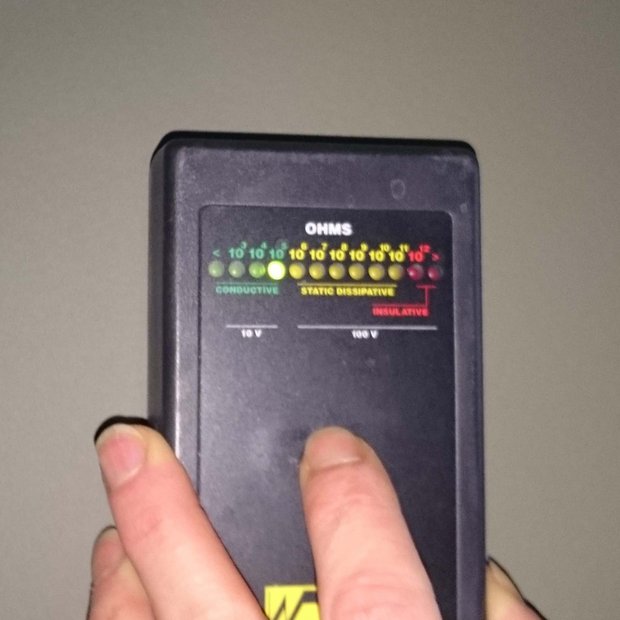

SÄKAPHEN Si 17 E is a high-quality hydrophobic single-component electrically conductive phenolic based thermosetting heat cured lining. The lining is self-priming and developed for direct to metal application. The electrical volume resistance is below 107Ω.
Si 17 E is chemically resistant to various liquid and gaseous media, including but not limited to organic and inorganic acids, aliphatic and aromatic hydrocarbons, salt solutions, oils and greases and acidic to weakly alkaline liquids up to max. pH 8. The lining is also resistant to temperature fluctuations.
Si 17 E also provides high impact and abrasion resistance. The surface contains exceptional hydrophobic properties, preventing caking, fouling and incrustation and is resistant to water vapor diffusion (≤ ΔT 85°C). Si 17 E once polymerized is fully machinable.
For the lining of Containers and Process Vessels for storing and transporting chlorinated hydrocarbons and flammable liquids, classified as dangerous according to class AI / AII and B and water endangering media (aliphatic and aromatic chlorinated hydrocarbons) due to an electrical volume resistance below 107Ω.
| Product name | Unit | SÄKAPHEN® Si 17® E | ||
|---|---|---|---|---|
| Properties | - | Heat Cured Duroplast | ||
| Resin base | - | Phenolic resin blend | ||
| Field of Application | - | Suitable for the coating of steel containers for storage and transportation of inflammable liquids classified as dangerous according to class AI / AII and B as well as for water endangering flammable liquids (aliphatic and aromatic chlorinated hydrocarbons) due to an electrical surface resistance less than 10^7Ω. | ||
| Cure Mechanism | - | Heat cured | ||
| Quantity of components | - | 1 | ||
| Color | - | Olive | ||
| Surface | - | Satin finished | ||
| General chemical resistance (All resistances have to be inquired separately!) | - | Electrically conductive and chemically resistant to various liquid and gaseous aliphatic and aromatic hydrocarbons, organic and inorganic acids, salt solutions, oils and greases, acidic to weak alkaline liquids up to max.pH 8. Diffusion resistant. | ||
| pH Range | pH | 1-8 | ||
| Wet Film Thickness per layer | µm | 100 | ||
| Total dry film thickness | µm | 180-200 | ||
| Coverage | approx. kg/m²/DFT | 1,2 kg / m² / 200µm | ||
| Surface Preparation | Sa | SA2 ½ - SA 3 | ||
| Surface Profile | µm | 40 - 60 µm | ||
| Temperature resistance dry (dry air oven) | °C | -20°C to +180°C/200°C | ||
| Temperature resistance wet (water) | °C | -20°C to +180°C/200°C | ||
| Resistance to water vapor diffusion | °C | ≤ ∆T 85°C | ||
| Overcoating Waiting Time | hours/23°C | no limitations | ||
| Chemical Curing | days | after final bake | ||
| Linear Thermal Expansion | µm | (VDE 0304): 29*10-6 mm/mm°C | ||
| Pore testing | Volts | 9 V | ||
| Pendulum hardness acc. to König | 6° sec | 134 | ||
| Shore D Hardness | Shore D | 95 | ||
| Adhesion Test | N/mm² [MPa] | >30 | ||
| Salt spray test | hours | 1250 | ||
| Impact Strength | mm (1 kg) | > 1000 | ||
| Surface smoothness (Ra) | µm Ø 3 readings | 2,8 | ||
| Surface tension | mN/m | >38 <41 | ||
| Taber Abrasion resistance, CS17 wheel, 1kg | mg/1000 r. | 6 | ||
| Crosscut | class | 0 (DIN EN ISO 2409) | ||
| Heat conductivity Ø 12,7x2,0mm on C-Steel with 67,37 w/mK | W/mK | 9,24 |
Following regulations of TRBS 2153 / WHG / TRbF, statically conductive linings resistant to water endangering flammable liquids must provide a specific resistance of ρ <107Ω in order to prevent electrostatic charge, often caused by repeated filling and emptying, ensuring increased operational safety.
